EVL® Abutments and Sleeves

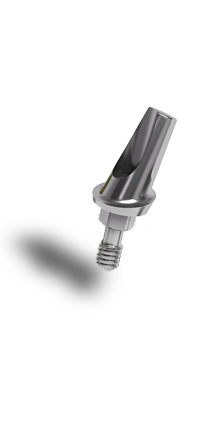

• Aesthetic abutments: FMTA

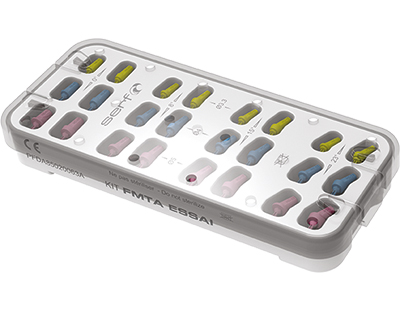

Straight and angled FMTA aesthetic abutments are designed for most indications of cement-retained prostheses. The FMTA range offers 4 different angles (0, 8, 15 and 23°) and 2 periodontal heights. To help choose the most appropriate abutment, the range is associated with a trial kit composed of replicas of abutments which are clipped onto implant replicas on models. The FMTA coronal height is 7 mm adjustable over 3 mm.

• Standard abutments: FMTR

Standard abutments have a coronal height of 11 mm, which prosthesis laboratories often appreciate.

• EVL TUB: temporary component (in titanium)

The tubes are indexed titanium sleeves for the construction of single prostheses or non-indexed for direct implant multiple prostheses (if clinical conditions allow this). The grooves at one-millimetre intervals facilitate cutting (subject to an adequate coronal height).

• Secondary part for the TUB

There is an oxidisable sleeve that accommodates the tubes. This is compatible with all diameters of EVL^® implants.
